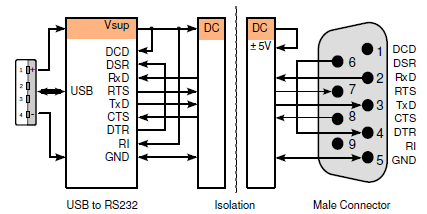

IFTool Energy transfer Serial converters

WxTerm - Multi - platform multi-language free SW with IFTool's USB to Serial converters, Creates a perfect complement way to explore the ISO232 ISO485 and USB232CONV abilities.

USB232CONV Extra large protection No more undefinable converter breakdown when connecting RS232 devices because of ±15 kV against ESD, short-circuit proof, high current load ±60 mA.	ISO232 The fastest with active outputs High isolating strength for safe connection of potential shifted devices. Active RS232 outputs by integrated energy transfer. No additional power supply necessary.	ISO485 Universal and safe A lot of setup possibilities cover a wide range of bus applications. By its high isolating capability it is usable in critical environment with potential shift.
Data rates 300...1 MBaud, non-standard baudrates Handshake RTS/CTS, DSR/dtr, Xon/Xoff. All are handled in hardware for fast response. Protocol 7,8 data bits, 1,2 stop bits, Odd/Even/Mark/Space/No parity Signals Full set of RS232 modem data and control lines, supports break command, ±15 kV ESD Isolation no Supported OS and driver access Certified driver for Windows 2000, XP, Vista, Windows 7. Linux includes driver since 2.4.0. Access via virtual COM port (/dev/ttyUSBx) or USB direct driver for own applications.	Data rates 300...460800 Baud, non-standard baudrates Handshake RTS/CTS, Xon/Xoff both handled in hardware for fast response. Feedback of DTR/DSR. Protocol 7,8 data bits, 1,2 stop bits, Odd/Even/Mark/Space/No parity Signals TxD, RxD, RTS, CTS, active ±12 mA output, ±15 kV ESD Isolation 2500 Vrms 1min, 420 Vpk working range Supported OS and driver access Certified driver for Windows 2000, XP, Vista, Windows 7. Linux includes driver since 2.4.0. Access via virtual COM port (/dev/ttyUSBx).	Data rates 300...460800 Baud, non-standard baudrates Handshake Xon/Xoff handled in hardware, feedback of RTS/CTS and DTR/DSR Protocol 7,8 data bits, 1,2 stop bits, Odd/Even/Mark/Space/No parity Signals TxD, RxD according to RS485 standard, ±15 kV ESD Isolation 2500 Vrms 1min, 420 Vpk working range Supported OS and driver access Certified driver for Windows 2000, XP, Vista, Windows 7. Linux includes driver since 2.4.0. Access via virtual COM port (/dev/ttyUSBx).

Data rates
300...460800 Baud, non-standard baudrates

Handshake
RTS/CTS, Xon/Xoff both handled in hardware for fast response. Feedback of DTR/DSR.

Protocol
7,8 data bits, 1,2 stop bits, Odd/Even/Mark/Space/No parity

Signals
TxD, RxD, RTS, CTS, active ±12 mA output, ±15 kV ESD

Isolation
2500 Vrms 1min, 420 Vpk working range

Supported OS and driver access
Certified driver for Windows 2000, XP, Vista, Windows 7. Linux includes driver since 2.4.0. Access via virtual COM port (/dev/ttyUSBx).

News

We are proud to present our new partner Jinan USR IOT Technology that delivers a unique OEM and ODM wired and wireless solutions. With USR-IOT products, we, KSR Electronics expend our communication solutions, for customers how prefer to shorten their TTM -time to market or time to money, using off the shelf, easy, fast, Low power consumption solution, to be integrated on their board, taking very small foot print. For example: Ethernet to serial /UART/ISP /TTL that fits into RJ45 connector size, or even 9X9mm chip size, and Wifi or GPRS serial servers who take 22X13.5mm only. Jinan USR IOT Technology Limited has been focusing on IOT and M2M field for more than six years. Offers OEM & ODM networking products such as serial device server, Ethernet to serial, GPRS DTU and embedded WIFI module. USR IOT provides OEM & ODM service for clients by professional in house hardware and software R&D teams, phone APP and server.

We are proud to present our new partner USR-IOT that delivers OEM ODM wired and wireless solutions.

With USR-IOT products, we, KSR Electronics expend the communication solution that we provide, for customers how prefer an integrated easy fast solution that will be integrated on their board taking very small foot print.

For example: Ethernet to serial /UART/ISP /TTL that fits into the RJ45 connector size or even 9X9mm chip size, to Wifi or GPRS serial servers who take 22X13.5mm.
