MSB-RS232 or MSB-RS485 - Protocol analyzers for RS232 or RS485/422 are the perfect combinations of sophisticated hardware and software analysis solution enabling:

  • Recording
  • Exploring
  • Visualizing
MultiView - Concept, Signal View, Data View, Event View, Protocol View and much more features.

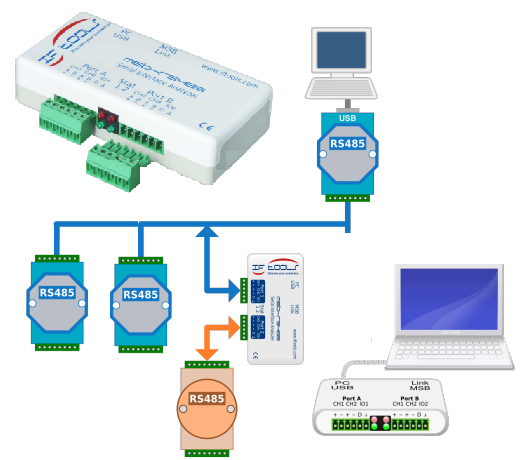

Analyzer


Sampling of all lines with max. 16 MHz

OS independent real time resolution of 1 µs for correct time relationship between all lines and serial data.

Any baudrate with FlexUART
Don't worry about unusual baudrates. Measure and set any rate from 1 Baud up to 1 MBaud.
Protocol scanner
Simple check and analysis of any communication with unknown connection parameters.
  Ready for 9 data bits
Recording and analyzing of protocols also with 9 bit data word length.

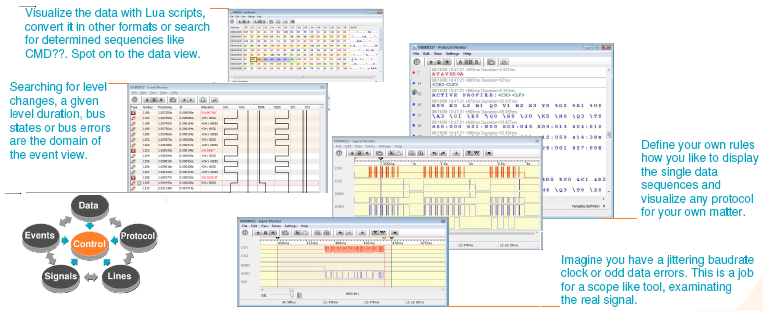

Analyzer SW

RS232 Analyzer
  RS485 Analyzer
ANAL 232   ANAL 485



MSB-RS485 and MSB-RS232 Recommendations Please
- המלצות משתמשים
  Click for recomender's details
Open source Programs and SW

MSB-RS232 or MSB-RS485 - RS232 or RS485/422 Protocol analyzer the perfect combination of sophisticated hardware and software analysis.
